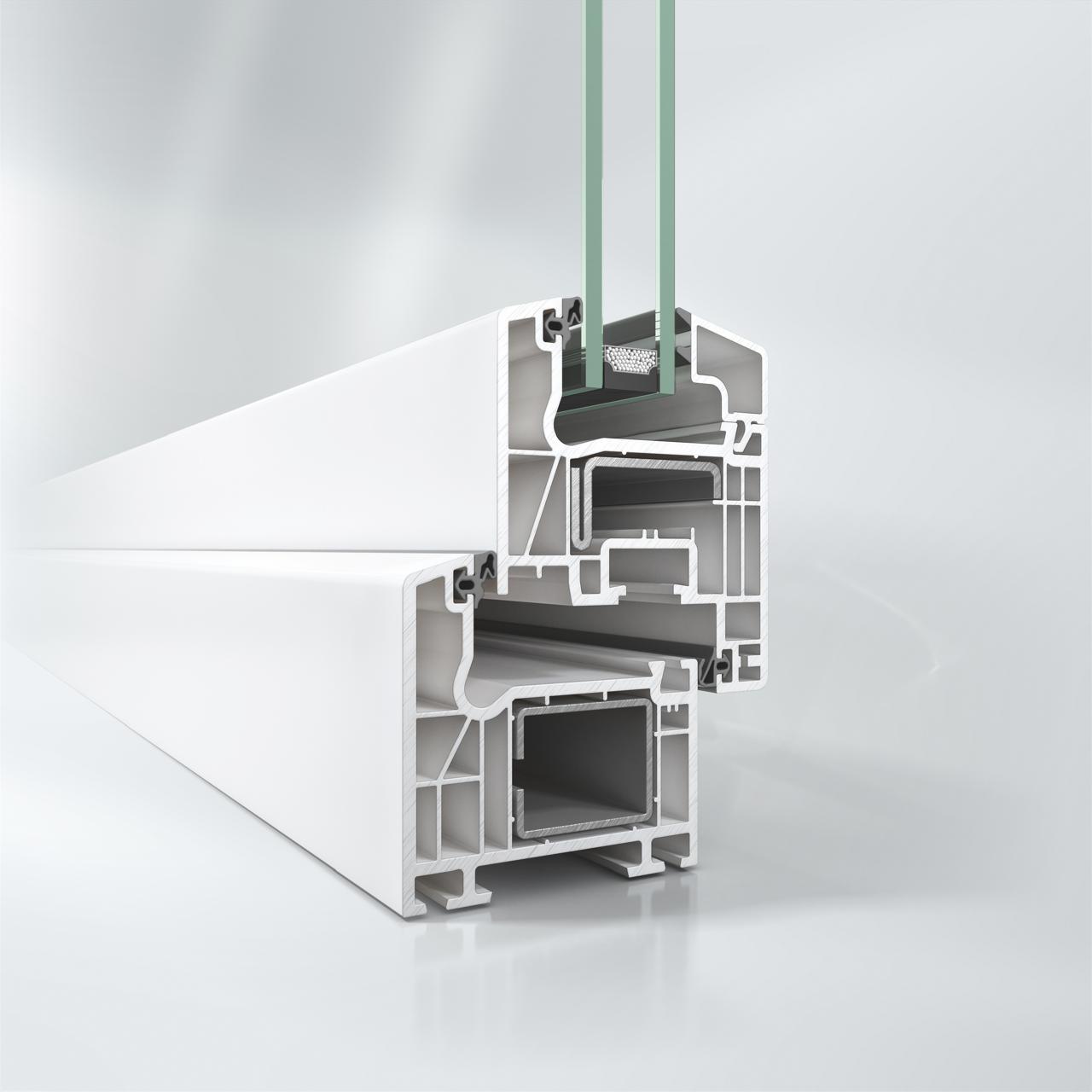

Schüco CT70 mm
Tilt & TURN uPVC System
Windows flood living spaces with light, ensure a clear view
and provide protection from the weather and environment.
With their timeless
design and intelligent technology, Schüco PVC-U window systems create visual
accents,
whilst excellent thermal insulation saves on energy costs, increasing
the value of your home and also
conserving the environment.
Features
70mm profile depth for superior insulation
Multi-chamber design for enhanced thermal and acoustic insulation
Advanced locking systems for increased security
Customizable options to match diverse architectural styles
High-quality uPVC for durability and easy maintenance
Environmentally friendly and recyclable materials
Features
| 70mm profile depth for superior insulation | |
| Multi-chamber design for enhanced thermal and acoustic insulation | |
| Advanced locking systems for increased security | |
| Customizable options to match diverse architectural styles | |
| High-quality uPVC for durability and easy maintenance | |
| Environmentally friendly and recyclable materials |
Technical Specifications
Dimensions
| Width of outer frame | 70 mm |
| Width of vent frame | 70 mm / 78 mm |
| Possible glazing thickness | 6 mm – 40 mm |
| Finishes Options |
|
| Width of outer frame |
| 70 mm |
| Width of vent frame |
| 70 mm / 78 mm |
| Possible glazing thickness |
| 6 mm – 40 mm |
| Finishes Options |
|
Tests and standards
Specifications
| Thermal insulation (DIN EN 12412-2) | Uf = 1.2 – 1.5 W/(m²K) |
| Sound reduction (DIN EN ISO 140-3, max)* | Rw,P = 46 dB |
| Burglar resistance (DIN EN 1627) | RC2 |
| Air permeability (DIN EN 12207) | 4 |
| Watertightness (DIN EN 12208) | 9A |
| Resistance to wind load (DIN EN 12210)** | C5 / B5 |
| Mechanical loading (DIN EN 13115) | 4 |
| Resistance to repeated opening and closing (DIN EN 12400) | 2 |
| Operating forces (DIN EN 13115) | 1 |
| Dependent on profile and glazing | Dependent on profile |
| Thermal insulation (DIN EN 12412-2) |
| Uf = 1.2 – 1.5 W/(m²K) |
| Sound reduction (DIN EN ISO 140-3, max)* |
| Rw,P = 46 dB |
| Burglar resistance (DIN EN 1627) |
| RC2 |
| Air permeability (DIN EN 12207) |
| 4 |
| Watertightness (DIN EN 12208) |
| 9A |
| Resistance to wind load (DIN EN 12210)** |
| C5 / B5 |
| Mechanical loading (DIN EN 13115) |
| 4 |
| Resistance to repeated opening and closing (DIN EN 12400) |
| 2 |
| Operating forces (DIN EN 13115) |
| 1 |
| Dependent on profile and glazing |
| Dependent on profile |
Standard Colours
Golden OaK
Black Grained
White
Ideal Applications for Expansive Spaces
- Private properties.
- Commercial properties.
- Hospitals and Schools.
- Industrial sites.
- Public facilities.
- Residential areas.
- Transportation hubs.
- Government and military facilities
Installation
At Maskni Alzaki, we accompany you every step of the way. Our commitment goes beyond simply manufacturing and designing V Mesh fencing to meet your requirements. We prioritize providing exceptional customer service to ensure your complete satisfaction.
From the initial stages of your project to its completion, we're here to support you. We handle everything from manufacturing and designing your windows to install it for you. Installing any type of windows, whether large or small, can present challenges. That's why our team of experts is readily available to guide you through the process and handle the intricate aspects. Our goal is to ensure you quickly enjoy the benefits of safe and secure windows
Ready to Upgrade Your Space?
Contact us today to explore how our Double Leaf Doors can transform your space. Whether you're renovating or building new, our doors offer the perfect blend of style, functionality, and durability. Customize your doors to meet your specific needs and ensure your space stands out with unparalleled quality and design.
